Item No.: C-10

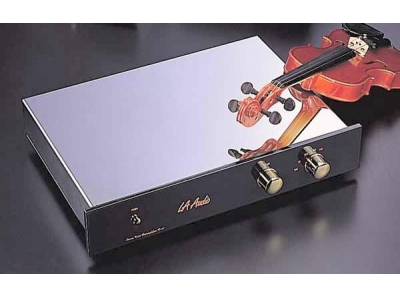

C-10  VACUUM TUBE PRE AMPLIFIER

● Frequency:10Hz-75KHz
● Harmonic distortion: <0.1% (at 1 KHz)
● Input sensitivity : 200mV
● Input Impedance:100kΩ
● Output Impedance:750Ω
● S/N Ratio:86dB
● Output voltage : 2V (Maximum 5V)
● Gain:12dB
● Input:5 sets
● Out:2 sets
● Tube:ECC81(12AT7)x2
● Consumed power:25 W
● Dimension:44.5(W)x35(D)x10(H)cm
● Net weight:8kgs
